Proton Therapy Systems
High AccuracyHigh Cure RateFast TreatmentFewer Side-effects
Effective for malignant tumours of the brain, spinal cord tumours, cerebrovascular diseases, head and neck tumours, eye lesions, thoracic and abdominal tumours, paediatric tumours and other diseases.
Parameters
Treatment RoomFixed-beam Treatment Room/ Gantry Room
Dose Rate≥2 Gy/(L.min)
Beam Intensity>800 nA
ParticleProton
Treatment HeadPencil Beam Scanning
Continuously Adjustable Energy Range70-220 MeV
Maximum Energy240 MeV
Radiation Field30 cm×40 cm
Introduction

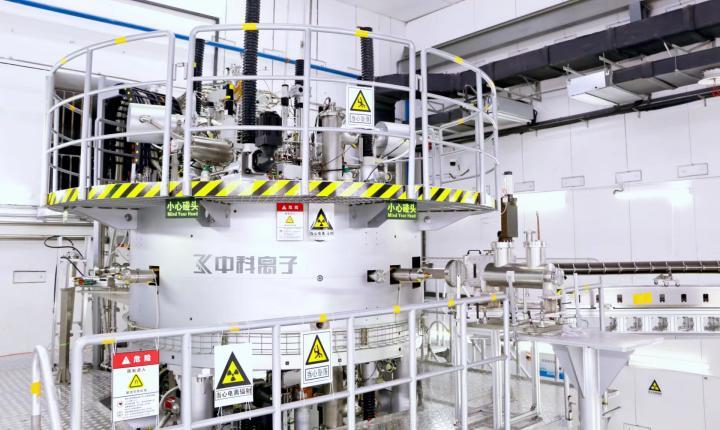

  • Superconducting Cyclotron
    Superconducting technology.
    Continuous high-dose intensity modulated.
    High efficiency.
  • 360° Gantry Room
    Lightweight.
    Full 360° treatment angle.

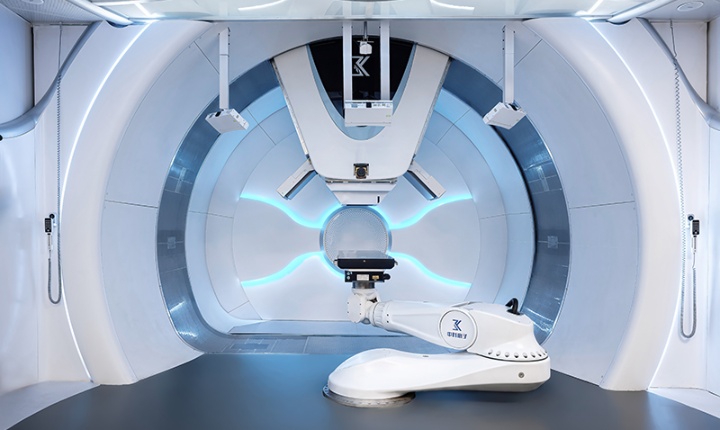

  • Gantry Room
    Equipped with a 360° rotating gantry, enabling precisedirectional treatment within 1 mm accuracy.
    Delivers multi-angle irradiation to the target area,significantly reducing damage to surrounding healthytissues.

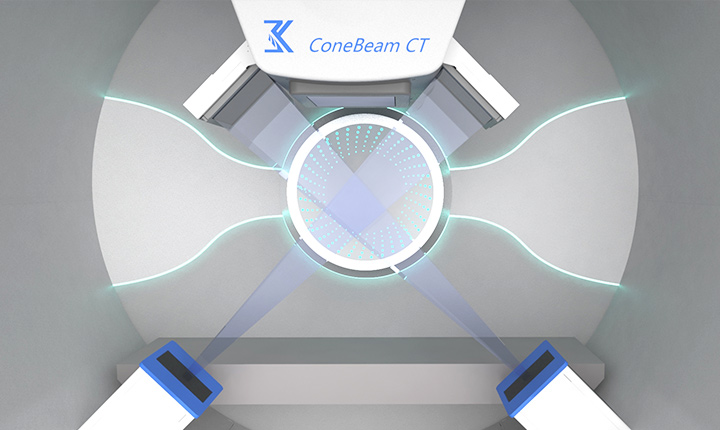

  • Cone-beam CT image Guidance System
    Performing a 360° scan around the patient to acquire the precise position of tumor area, minimizing radiation exposure to normal tissues.
Advantages
  • High Efficiency
    Scientific system operation process, fully optimised working logic, the average treatment time of 15 minutes per session; Flash technology allows brief but high dose tumor radiation, effectively reducing treatment duration.
  • Compact Structure
    Superconducting technology enables small size, light weight, low energy consumption, thereby reducing floor space and construction costs.
  • Customized Interface
    Customized development to clinical needs, lightweight interface library, bilingual (English and Chinese) user interface for ease of operation.
  • High Accuracy
    Advanced pencil beam scanning technology ensures continuous and stable beam current, rapid intensity modulation; fully rotating gantry and precise image guidance system enable flexible irradiation
Options

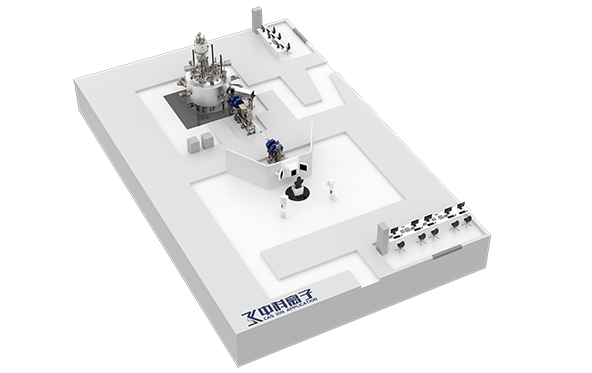

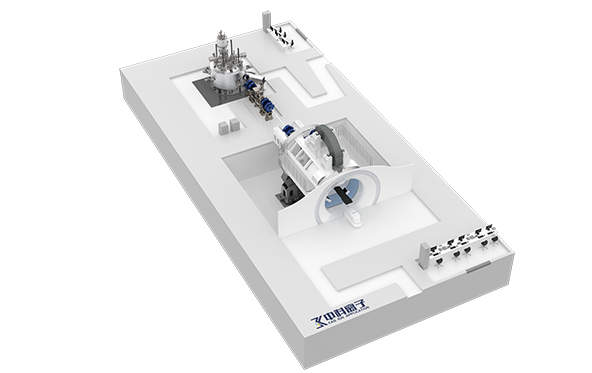

  • CAPRO-S（1 room）
    The footprint of the single-room proton therapy system is approximately 400 m2
    360° gantry room

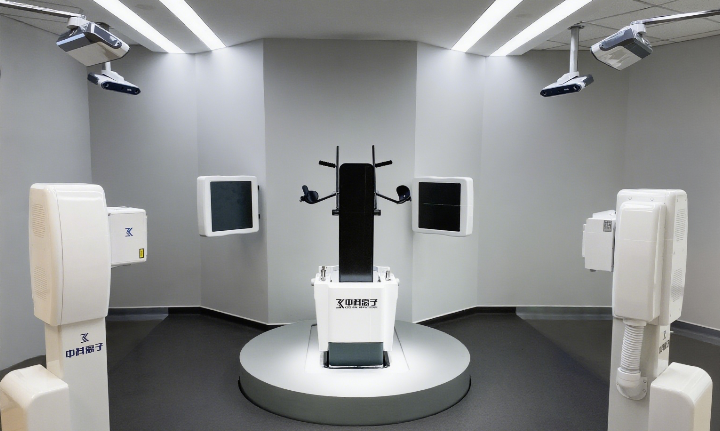

    Mini360 Seated Rotating chamber

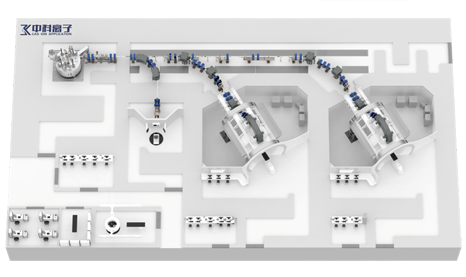

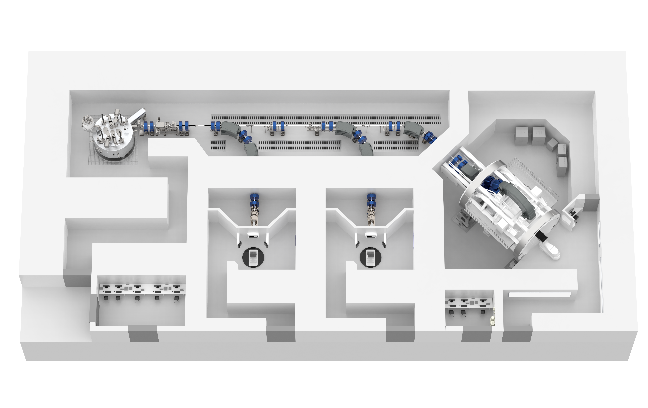

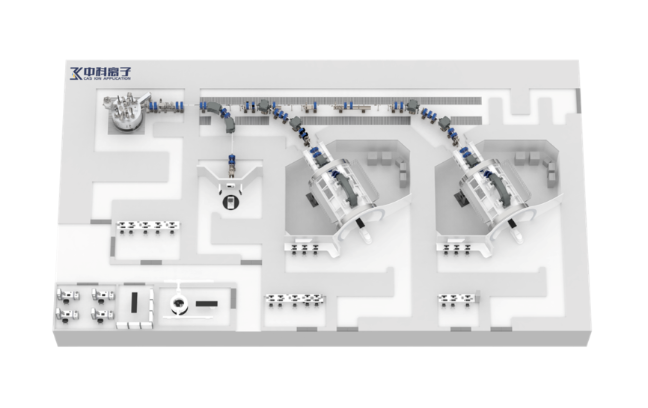

  • CAPRO-C (2 rooms)
    The footprint of the 2-rooms proton therapy system is approximately 600 m2.
    two 360° gantry room, one Mini360 seated rotating chamber
    one 360 ° gantry room, two Mini360 seated rotating chamber
